Victory 10 4 Wheel

Victory 10 4 Wheel

The Victory 10 4 Wheel mobility scooter by Pride combines high performance with a sleek, sporty design. It features Pride’s convenient one-hand Feather-Touch disassembly for easy transport. The scooter is equipped with an LED battery gauge and a long-lasting, high-intensity LED headlight for enhanced safety and illumination. Its advanced standard features include flat-free, non-scuffing low-profile tires and a wraparound Delta tiller, making the Victory 10 an exceptional value.

Description

Choose a Tested, Proven Mobility Scooter

With a time-tested, industry-leading mobility scooter like the Victory 10 4 Wheel, only your imagination limits you. Cruise through the day with a fresh perspective on what’s possible. A reliable scooter is your passport to explore and move into each new experience with confidence.

The Victory 10 4-Wheel provides the stability, power, and comfort you expect from Pride Mobility. Features start at the ground with four solid 10-inch, non-scuffing tires, which easily tackle varied terrain.

Sit comfortably in the 18-inch by 17-inch adjustable seat, which includes a pinch less hinge. It slides, letting you slide forward and backward to find just the right position. It swivels, making it easier to transfer on and off from the side of the scooter.

It’s also great for rolling right up to the dinner table, then swivel the seat to comfortably enjoy your meal. So next time you’re maneuvering around the amusement park with pals, you can dig into that funnel cake at the picnic table without ever stepping off.

Capacity, speed, and range to power your day

Battery capacity takes you up to 15.5 miles, far more than most people need even during the most fun-filled day. You’ll lead the pack with speeds up to 5.3 mph.

Additional features in the Victory 10 4-Wheel mobility scooter include a long-lasting, brilliant LED path light and Pride’s acclaimed feather-touch disassembly. With capacity, speed and longevity, your next day trip doesn’t have to be a half-day trip.

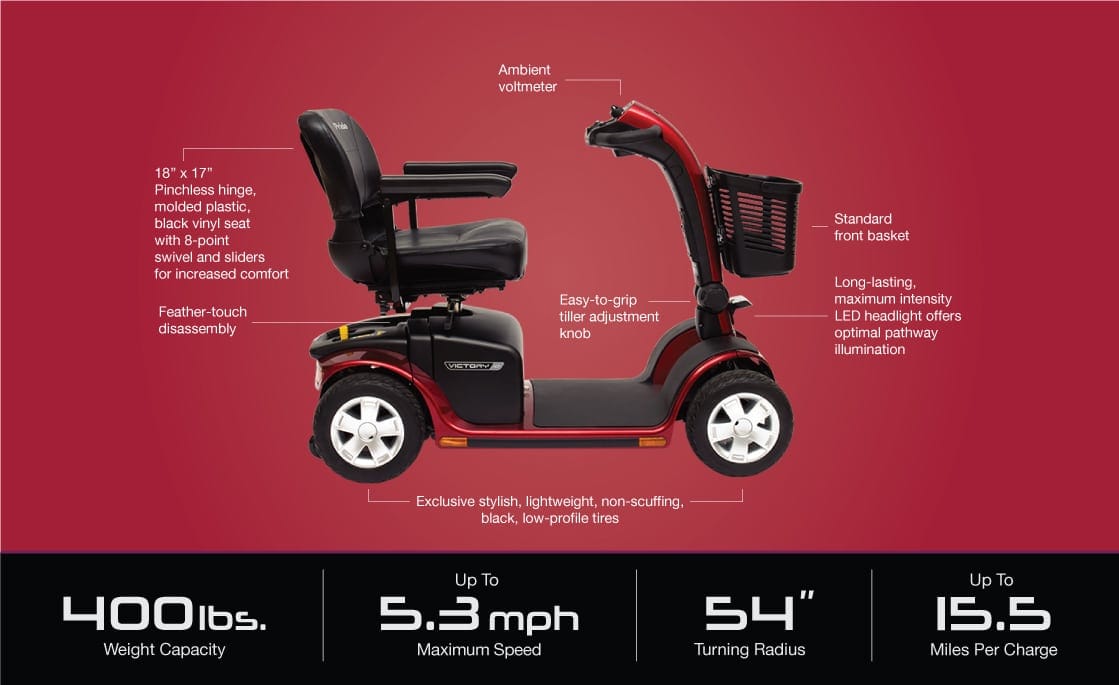

Victory® 10 4-Wheel Features:

  • 400 lbs. weight capacity
  • Up to 5.3 mph maximum speed
  • 54″ turning radius
  • Up to 15.5 miles per charge
  • 18″ x 17″ Pinchless hinge, molded plastic, black vinyl seat with 8-point swivel and sliders for increased comfort
  • Exclusive stylish, lightweight, non-scuffing, black, low-profile tires
  • Standard front basket

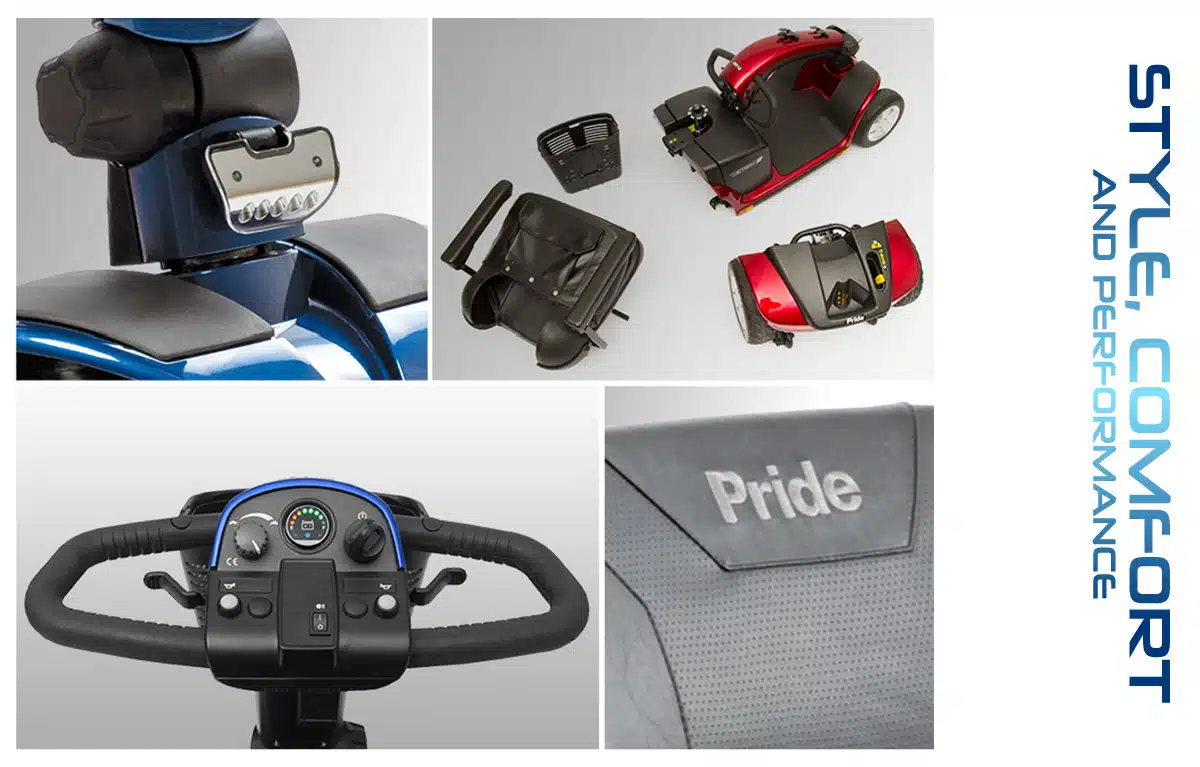

  • Exclusive one-hand feather touch disassembly provides the ultimate quick transport system
  • Delta tiller with wraparound handles
  • Easy-to-read Ambient Voltmeter
  • Long-lasting, maximum-intensity LED headlight offers optimal pathway illumination
  • Easy-grip tiller adjustment knob
  • Easy access tiller-mounted charger port
  • Auto-connecting front-to-rear harness
  • HCPCS Code: K0801 – Group 1 Heavy Duty

Victory 10 4 Wheel

*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments



Specifications

Model
Victory 10 4-Wheel
Model Number1
S710
Number or Tires4
Front Tires23.5″x10″ Solid
Rear Tires23.5″x10″ Solid
Maximum Speed8Up to 5.3 mph
Ground Clearance22″ at motor; 3.1″ at side deck
Turning Radius254″
Length247″
Width2,422.25″
Seat-to-Ground Height Range223.5″-25″
Seat-to-Deck Range217.5″-19″
Standard Seat TypeCompact, Foldable;
Materal: Black Vinyl;
Seat Size: 18″x17″
Weight Without Batteries2137 lbs.
Weight With Batteries3- wheel (U1)- 181 lbs.
3-wheel (40Ah)- 197 lbs.
4-wheel (U1)- 185 lbs.
4-wheel (40Ah)- 201 lbs.
Weight of Heaviest Piece263 lbs. (front section)
Battery Weight6U1- 24 lbs. each; 40AH (optional) -32 lbs. each
Battery Requirements7(2) U1 (standard); (2) 40AH (optional)
Per Charge Range (max)8,9Up to 15.5 miles
Battery ChargerOff-board, 3A (U1); Off-board, 5A(40AH)
SuspensionNA
Maximum Weight Capacity400 lbs.
HCPCS CodeK0801- Group 1 Heavy Duty
WarrantyLifetime limited on frame;
2-year limited on electronics;
2-year limited on drivetrain
Color OptionsCandy Apple Red, Viper Blue
1Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
2Due to manufacturing tolerances and continued product improvement, this specification is subject to a variance of +/- 3%
3Width of base (not including seat).
4Battery weight not included.
5Includes standard seat weight.
6Battery weight may vary based on manufacturer.
7Deep cycle (AGM or gel cell type recommended).
8Varies with user weight, terrain type, battery amp- hour (AH), battery charge, battery condition and tire condition. This specification can be subject to a variance of (+ or -) 10%.
9Tested in accordance with ANSI/RESNA, WC Vol 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.

Manual

Brochures

Owner’s Guides

Video

Warranty

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride’s Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

  • Product Stability & Brakes Effectiveness Tests
  • Fatigue & Impact Strength Verification Tests
  • Overall Product Performance Verification
  • Dimensional Requirement Compliance
  • Product Durability & Reliability Testing
  • Material Protective Coating Testing Verification
  • Misuse and Abuse Testing
  • Ergonomic Verification
  • Environmental Testing for Adverse Weather Operation Conditions
  • Electronic Systems Performance and Durability
  • Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
  • Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
  • UL94VO Flammability Testing for Compliance of Plastic Components
  • Electromagnetic Compatibility (EMC)

Warranty

  • Lifetime limited warranty on frame
  • 2-year limited warranty on electronics
  • 2-year limited warranty on drivetrain
