Description

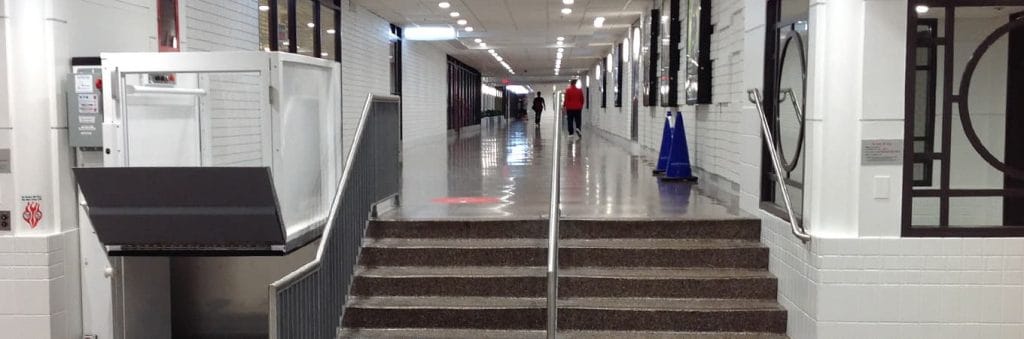

The Savaria Multilift VPL is an innovative wheelchair lift, engineered to deliver safe and efficient vertical transportation for individuals with mobility challenges. This advanced platform lift is ideal for both residential and commercial settings, offering reliable, barrier-free access to all levels of a building.
Durable construction: Ideal for indoor use or outdoors; includes weather-resistant lock.
Reliable operation: From the ACME screw drive with its precision movement and strength for day-to-day use.
Easy to install: The self-enclosed drive tower makes the unit fast and easy to install.
Other standard features: Continuous pressure operation, keyed access on car, non-skid zinc-coated platform in three standard sizes, automatic access ramp.
Standard finish: Beige powder-coat paint.
Safety features: Emergency stop button on car, underpan obstruction sensors, non-skid platform, manual lowering crank, 42 1/8″ (1070 mm) side panels, keyed cab buttons and keyed call stations, automatic access ramps, backup nut and backup nut safety switch.
Specifications
Applications: Commercial*, residential, indoors, outdoors
Standard capacity: 750 lb (340 kg)
Maximum travel distance: 48″ (121.92 cm), optionally up to 72″ (182.88 cm)
Nominal speed: 8 ft/min (0.04 m/s)
Drive/motor: ACME screw drive and back-up nut, 1 hp, relay logic controller
Power supply: 120 VAC, 15 A, 60 Hz, single phase (must be a dedicated electrical line).
*complies with ASME A18.1 (US), and B.355 & B.613 (Canada), state and local codes may differ
Optional configurations: Type 2, 3 and 4
Platform sizes:
W34″ x L48″ (864 mm x 1219 mm) Type 2, 3, 4
W34″ x L54″ (863 mm x 1371 mm) Type 2, 3, 4
W34″ x L60″ (863 mm x 1524 mm) Type 2, 3, 4
Access ramp: 16″/406 mm, 24″/610 mm (Quebec or optional)
36″ and 42″ wide platforms optional
Other options: Low profile aluminum doors, steel ULC fire-rated ProDoor, wooden door, power gate and door operators; aluminum, acrylic or clear tempered laminated inserts for gate and aluminum door; GAL or Savaria WR-500 weather resistant lock; emergency light on car; fixed access ramp; commercial package (audible alarm on car, grab rail); telephone or ADA handsfree phone; joystick; 60 mm buttons; wired hand pendant. Keyless operation if desired. This unit can also be configured to travel up to 72″ (1828 mm).
Warranty

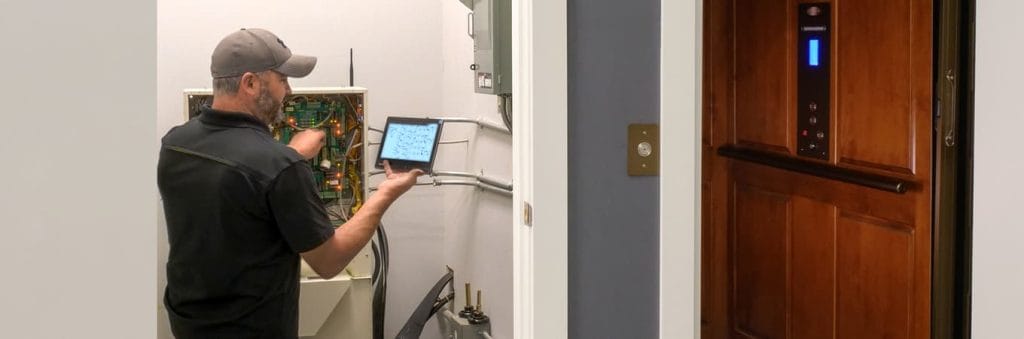

We offer a 36-month manufacturer’s parts warranty on all Savaria wheelchair lifts.
Term of warranty – this warranty is valid for a period of 36 months* from the date that the product shipped from our factory. Purchase price for product must be paid in full for manufacturer to release parts under this warranty.
Coverage – this warranty applies to the repair or replacement, at Manufacturer’s option, of parts that fail due to defective material or workmanship. Manufacturer may, at its option, provide factory reconditioned parts. This warranty is provided to the Authorized Savaria Dealer on behalf of the final purchaser of the product and is not transferable. The Manufacturer’s warranty does not cover labor charges for the removal, repair or replacement of warranty parts but such costs may be covered for a period of time by Authorized Dealer’s warranty, which is provided to purchaser separately.
Conditions:
1. This warranty only applies to products installed and maintained by an Authorized Savaria Dealer in conformance with all applicable local and national codes.
2. The warranty is void if regular inspection and maintenance of product is not being carried out by an Authorized Savaria Dealer in accordance with the recommendations contained in the Owner’s Manual. It is the Owner’s responsibility to keep records of all such service. To maintain warranty, products installed in harsh environments (e.g. salt water, temperature extremes), will require additional maintenance.
3. This warranty does not apply to the following:
- Consumable items which include: light bulbs, batteries, UPS (uninterruptible power supplies), oil seals, mechanical switches, guide shoe inserts, drive belts, hydraulic fluids, greases, oils, etc.
- Structural or cosmetic components that are subject to normal wear and tear, external forces and/or misuse. This includes metal panels, glass, acrylic, gates, travelling cable, doors, buttons, switches, upholstery, trim, etc.
- Items that require periodic assessment, maintenance and/or replacement. This includes paint, caulking, weather seals, etc.
- Malfunction or damage to product caused by accident, misuse, abuse or vandalism, lack of proper maintenance, improper installation or placement of product, neglect, improper adjustment, modification or alteration, structural condition of building or hoist way, overloading, failure to follow operating instructions or acts of God.
Standard Procedures:
Required warranty parts will be shipped at Savaria’s expense by FedEx ground. Expedited or air shipment of parts is available at Dealer’s request and expense. Some parts covered under this warranty may be commercially available from a source close to the job site and Savaria will reimburse Dealer for cost to purchase these items provided that approval is obtained from Savaria’s Technical Support Department in advance.
Disclaimers:
Savaria (Savaria Concord Lifts, Inc.) disclaims liability for any personal injury or property damage resulting from the operation of a product that has been modified from the original Savaria design. No person or company is authorized to change the design of this product without written authorization by Savaria.
Savaria’s obligation under this warranty is exclusively limited to the repair or exchange of parts that fail within the applicable warranty period.
Savaria assumes no responsibility for expenses or damages, including incidental or consequential damages. Some states and/or provinces do not allow the exclusion or limitation of incidental or consequential damages so the above limitation may not apply to you.
This Warranty supersedes all other published warranties in Owner’s and Installation Manuals and applies to sales after November 14, 2005. *For the Savaria S64, C65 and Roby, the warranty period is limited to 24 months. For Quebec projects with the S.H.Q / P.A.D program , S.A.A.Q and C.S.S.T , the warranty terms shall be the same limited warranty but for a period of 12 months.
