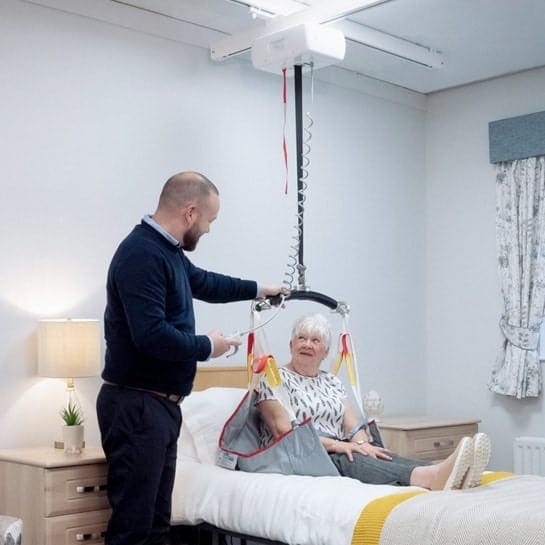

    Mackworth TX600 Fixed Ceiling Lift

    Mackworth TX600 Fixed Ceiling Lift

    Mackworth USA

    Our low-profile, fixed ceiling track lifts provide a greater lifting height than any other lift option and are safe, practical and always there when needed.

    The TX600 makes it possible to move mobility impaired individuals with minimal strain or risk to the caregiver, while providing complete safety, dignity and comfort for the client.

    The TX600 ceiling lift should be used in conjunction with a suitable fixed ceiling track system and a moving and handling sling.

    SKU: TX600 Category:

    Description

    When using the TX ceiling lifts, the individual being moved remains confident knowing that their transfer from bed to chair, chair to toilet, or chair to bath will be completed safely, comfortably, and with dignity. These lifts are designed to be operated by both professional health care workers and home health care workers who may not have a specific range of skills in health care. Typical home care users may include, but is not limited to, family, friends, neighbors, carers, etc. Focusing on the dignity and well-being of the person being moved, this lift maximizes the amount of care provided to the person.

    The TX fixed ceiling lifts are designed for use with ceiling tracks and should not be used for any other application. It has the ability to raise up an individual from one location, such as a bed, move the individual along the track to another location, and finally lower the individual, such as into a chair or a bath.

    • Low Profile – Low profile ceiling lift with 78.74” (2000mm) lifting range.
    • Wet Rooms & Bathrooms – Ideal for use in wet rooms and bathrooms.
    • Smooth High Torque Motor – Smooth running lifting tape and high torque motor, with powered traverse option available.
    • Lift Capacity – Transfer patients up to 600 lbs.
    • Discreet Design – Unobtrusive design which doesn’t take up floor space or cause trip hazards, and is complete with in-track charging point.

    Specifications

    Lift Motor:24 VDC
    Traverse Motor (optional at time of purchase):24 VDC
    Charger Input:100-240V AC 50/60Hz 1.5A
    Charger Output:24 VDC/1.0 A
    Batteries:24 VDC (2x 12 VDC) 5.0 Ah (SLA)
    Lift Case:Flame Retardant ABS
    Lift Case Degree of Protection:IP21
    Handset Degree of Protection:IP67
    Operation:Handset (Pneumatic)
    Sound Level:54 dB(A)
    Traverse Speed (SWL) 1, 2, 3, 4:1.58 “/s (40.12 mm/s), 3.87 “/s (98.24 mm/s), 5.90 “/s (150.00 mm/s), 7.75 “/s (196.88 mm/s)
    Traverse Speed (No Weight) 1, 2, 3, 4:1.79 “/s (45.48 mm/s), 4.11 “/s (104.34 mm/s), 6.23 “/s (158.32 mm/s), 7.87 “/s (200.00 mm/s)
    Traverse Stopping Distances (SWL) 1, 2, 3, 4:0.24″ (6 mm), 1.22″ (31 mm), 2.28″ (58 mm), 3.31″ (84 mm)
    Traverse Stopping Distances (No Weight) 1, 2, 3, 4:0.24″ (6 mm), 1.22″ (31 mm), 2.36″ (60 mm), 3.50″ (89 mm)
    Traverse Duty Cycle:25% use, 75% rest (90 seconds use, 270 seconds rest)
    Lifting Speed (SWL):1.16 “/s (29.52 mm/s)
    Lifting Speed (No Weight):2.54 “/s (64.52 mm/s)
    Lowering Speed (SWL):2.14 “/s (54.48 mm/s)
    Lowering Speed (No Weight):2.39 “/s (60.75 mm/s)
    Stopping Distances Up (SWL):0.39″ (10 mm)
    Stopping Distances Up (No Weight):0.94″ (24 mm)
    Stopping Distances Down (SWL):1.54″ (39 mm)
    Stopping Distance Down (No Weight):1.30″ (33 mm)
    Raising/Lowering Duty Cycle:15% use, 85% rest (90 seconds use, 510 seconds rest)
    Emergency Down Stopping Distance (SWL):1.54″ (39 mm)
    Emergency Down Stopping Distance (No Weight):1.38″ (35 mm)
    Battery Capacity for Raising/Lowering (SWL):35 Lifts (Top 500 mm of Lift Tape)
    Battery Capacity for Raising/Lowering (200 kg / 440 lbs.):60 Lifts (Top 500 mm of Lift Tape)
    Battery Capacity for Raising/Lowering (100 kg / 220 lbs.):120 Lifts (Top 500 mm of Lift Tape)

    Manual

    Warranty

    At Mackworth USA, we focus on serving our customers, and our warranty provides worry-free benefits with your lifting and handling equipment. Please purchase confidently, knowing that we are committed to customer satisfaction. If you have any questions, please do not hesitate to contact your local representative.

    Our new simplified offering means that after April 1, 2023, all products will be covered by either a 5-year or 12-month warranty.

    5-Year Warranty

    Mackworth USA is proud to offer a 5-year warranty on extensive range of products against failure within the period of 60 months, from the date of purchase, by virtue of defects in material or workmanship. Products covered by the 5-year warranty include: Ceiling Track Lifts Gantry and Track Systems Floor Lifts

    12-Month Warranty

    We also proudly offer a 12-month warranty on batteries, lift tapes and other consumables, so you can trust that you’re always protected.
