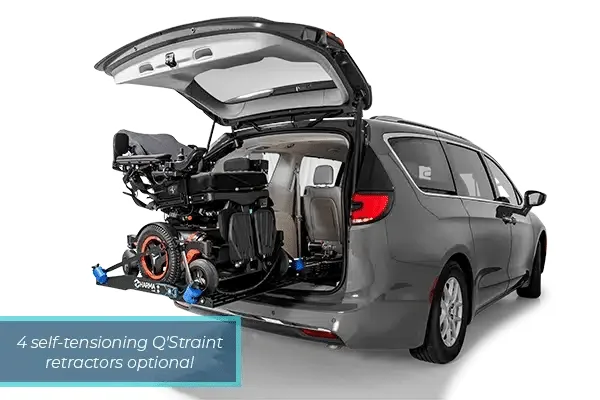

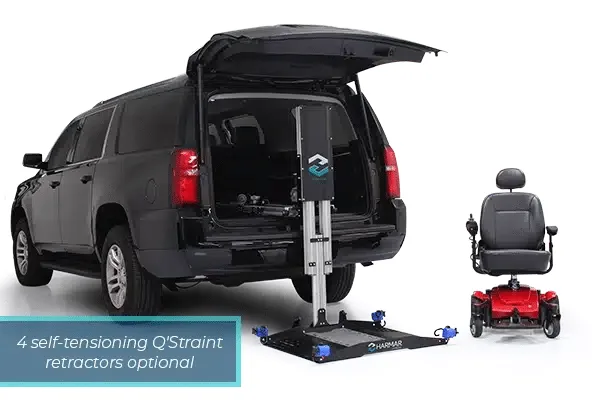

Harmar AL6000 Platform Lift

Save space in your garage and keep your rearview camera in use with Harmar AL6000 Platform Lift or AL6000 HD hybrid lift. Complete with powerhouse lifting capabilities, this hybrid vehicle lift is optimal for lifting most powerchairs or scooters and safely transporting your mobility device in your vehicle’s cargo area.

The AL6000 and AL6000HD are optimal for virtually all powerchairs and scooters up to 350 lb or 400 lb (HD).
Compatible with most minivans, SUVs, and vans.
This lift series offers transportation for your mobility device inside your vehicle’s cargo area, securing the powerchair or scooter with either 4 cam buckles (AL6000) or a padded hold-down arm (AL6000HD).

Description

The Harmar AL6000 Platform Lift and AL6000 HD are ideal for transporting your valuable mobility device inside your vehicle, protected from the harsh elements. This hybrid powerhouse features sliding aluminum rails for smooth performance and increased load capacity. And despite its compact stowed dimensions, the lift features a 36″ vertical travel from the cargo area to the ground and is remote control operated.

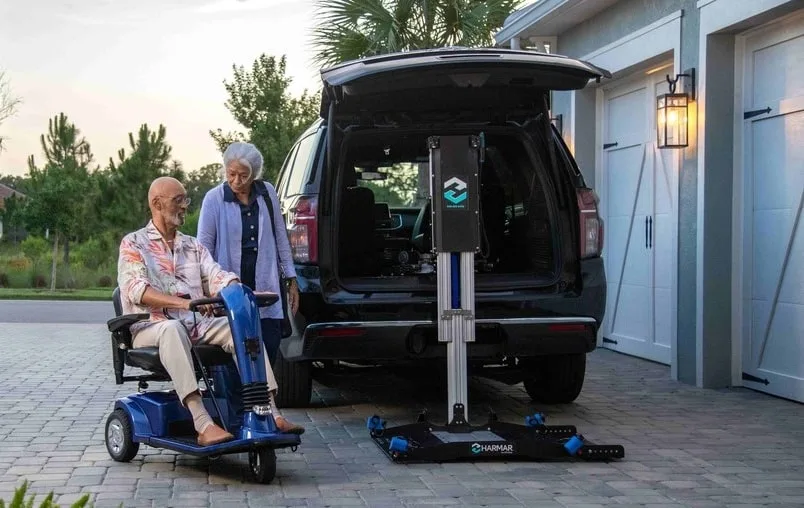

Harmar AL6000 Hybrid Inside Platform Lift

In many cases, the AL6000 or AL6000HD can be installed on existing vehicle hardware (for the third-row seating).

Designed for high-capacity, intelligent installation, and wide-ranging loading distances, the AL6000 series is the premier choice for carrying a mobility device inside vans and SUVs.

Carries virtually all standard power chairs and scooters
Allows continued use of second row seating; no drilling required in most vehicles
Remote hand control

While hybrid lifts require little-to-no work while operating the lift, there are certain steps that must be completed in order to ensure your mobility device is secured for travel.

Walking from the front to the rear of the vehicle and back again
Standing up to three minutes while the lift operates
Steer or push the mobility device on/off the platform
Fold down the seat back of the mobility device or scooter tiller until it is in its most compact position
Apply pressure to hold down a button on the handheld control while the lift operates
Tie-Down Straps: Connect the hook to location on mobility device and pull strap end to increase tension (self-retracting strap upgrades are available)

With its lifting capacity of 350 lb or 400 lb (HD), the AL6000 and AL6000HD are great fits for virtually any powerchair or scooter. Consult with your local Harmar dealer to ensure this lift is best for your mobility device and vehicle.

The AL6000 and AL6000HD are compatible with most minivans, SUVs, and vans; however, we invite you to click the Check Vehicle Compatibility button below to get a better idea of whether your vehicle is the best fit. Or, ask your local Harmar dealer for guidance when shopping for your lift.

CALL US TODAY! and talk to our staff at Access2Mobility 903-592-6760.

Specification

Lift Operation:	Power
Power Source:	Hardwired
Works With Hitch Size:	Trunk or Cab Secured
Professional Install Available:	Yes
Service Contract Available:	No
Operation:	Power
Lifting Capacity:	350 lbs.
Headroom Required:	31″
Recommended For:	Travel Scooters Full Sized Scooters Full-Size Power Wheelchairs
Platform Size – Length:	28.5 in.
Installed Product Weight:	175 lbs.
Type of Lift:	Inside Lift
Warranty:	3 Year Limited Warranty
Warranty – Transferable Warranty:	Yes

Warranty

Harmar Mobility warrants to the original purchaser of the vehicle lift manufactured by Harmar to be free of defects in material, mechanical and electrical component (parts), excluding labor costs, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed and maintained by an authorized Harmar distributor or certified Harmar installer and operated properly.

This warranty does not cover defects in vehicles on which Harmar products are installed or malfunctions in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement. All warranty claims must be reported to the dealer from whom the lift was purchased as they have responsibility for handling warranty claims.

Dealers may charge for labor, service, travel, or other associated costs to make repairs, and such charges are not covered by this Limited Warranty.

All parts used to replace defective materials must be genuine Harmar parts to be covered by this Limited Warranty. This Limited Warranty grants specific legal rights, other rights vary from state to state.

Manual

AL6000/AL6000HD Brochure

AL6000 Series Owner’s Manual
